Ceiling & Baffle Systems
Suspended Acoustic Baffle Ceiling
- Baffle depth
- 300 mm, 600 mm, 900 mm
- Finish
- PET felt, Acoustic fabric, Timber veneer
- Layout
- Made to the reflected ceiling plan
Free UAE delivery
On stocked panel orders
Next-day dispatch
For items held in Dubai
Custom sizes
Made to your specification
Technical support
Talk to someone who fits these
Not sure how many packs you need? Use the room estimator
Or call +971 56 367 8787 or +971 50 401 9798

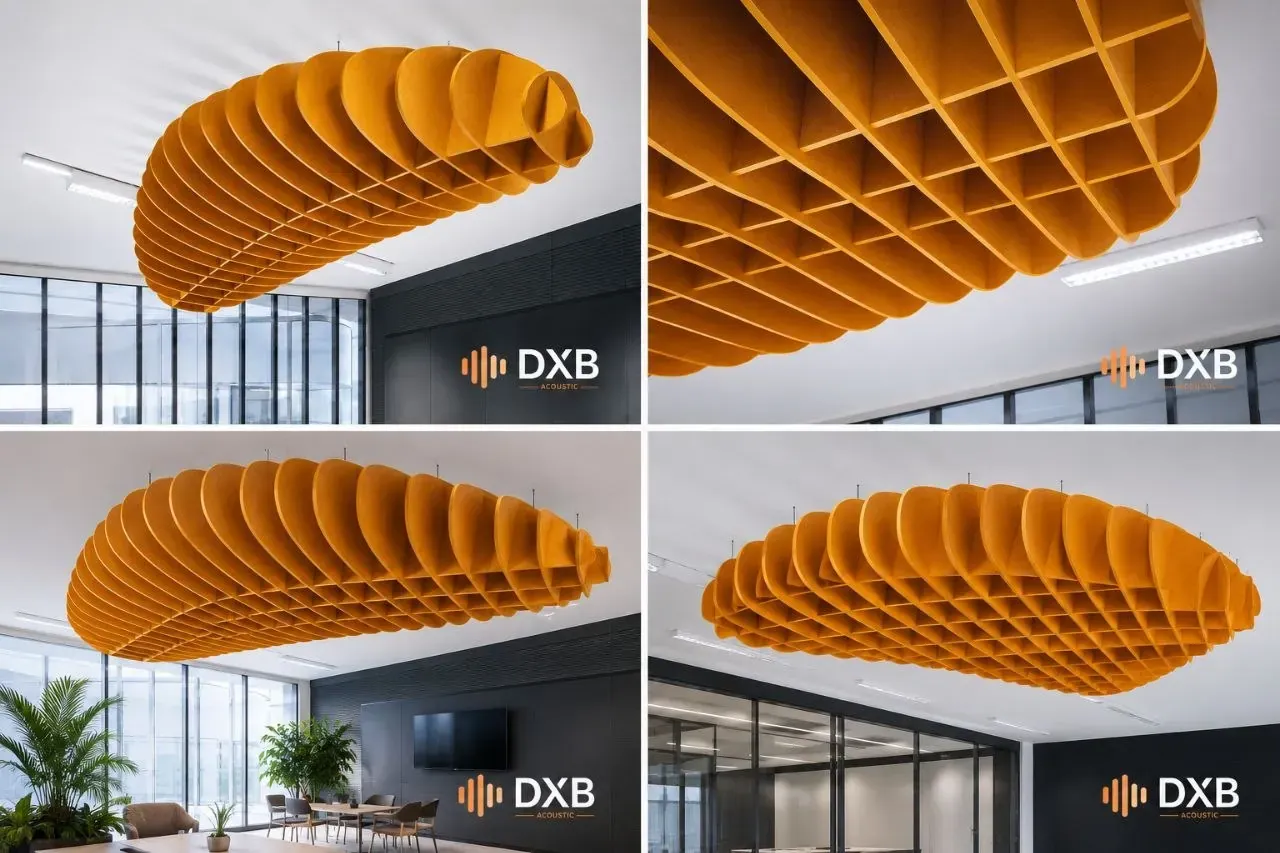

Absorptive blades hung on edge from the soffit — high absorption with minimal coverage, services left accessible above. Depth, spacing and finish set to your reflected ceiling plan. Supplied and installed across the UAE.
Product details
How it works
Vertical baffles are absorptive blades hung on edge from the soffit, spaced across the ceiling. Because both faces of every blade are exposed to the room, a baffle field reaches a high absorption coefficient with far less coverage than a solid drop ceiling — and it leaves services, sprinklers and the structural slab accessible above.
Where it suits
Open-plan offices, receptions, restaurants and atria where reverberation has to come down but ceiling height and a raw-ceiling look both matter. Baffles are set out to your reflected ceiling plan — orientation, spacing and drop are tuned to the room volume and the lighting grid.
Build & finish
Cores are recycled PET felt or mineral wool to a specified fire rating, faced in PET felt, acoustic fabric or timber veneer. Suspension is exposed wire or a concealed track. Manufactured in Dubai and installed by our own team.
Before you order
Common questions about ordering
Because the honest answer depends on quantity, size, fabric or veneer, and whether we install it. We manufacture to specification rather than sell off the shelf, so every enquiry is quoted properly — normally within one business day.
It is quoted separately, once we know the site, the access and the finish. Many customers fit panel packs themselves; project work — ceilings, isolation, custom structures — is almost always supply and install.
It depends on the room's size, use and existing finishes. The Room Estimator calculates a coverage target and a recommended quantity in about a minute, or send us your dimensions and we'll work it out.
Often, yes. We manufacture in-house, so fabric and wooden ranges can be produced to a specified size and finish. Ask us with your requirement and we'll confirm feasibility and lead time.
Yes. Send a BOQ or drawings to info@dxbacoustic.com and we'll return a specification and a project quotation.
